High current ratings Common Mode Choke for Power supply system 744281101
Characteristics:
-
- Enormous common mode impedance Z
- Small dimensions
- 1:1 turns ratio
- High current ratings
- Climatic category 40/125/21
- Flammability corresponding to UL 94 V-0
Applications:
-
- Suppression of common mode noise
- Power supply system
- Data lines
Electrical Properties:
| Properties |
| Test conditions | Value | Unit | Tol. |
| Inductance | L | 100 kHz/ 100 mV | 10 | µH | ±20% |
| Maximum Impedance | Zmax |
| 10000 | Ω | max. |
| Rated Current |
| ΔT = 40 K | 1100 | mA | max. |
| DC Resistance | RDC |
| 0.12 | Ω | max. |
| Insulation Test Voltage | VT |
| 250 | V (AC) |
|
| Rated Voltage | VR |
| 80 | V | max. |

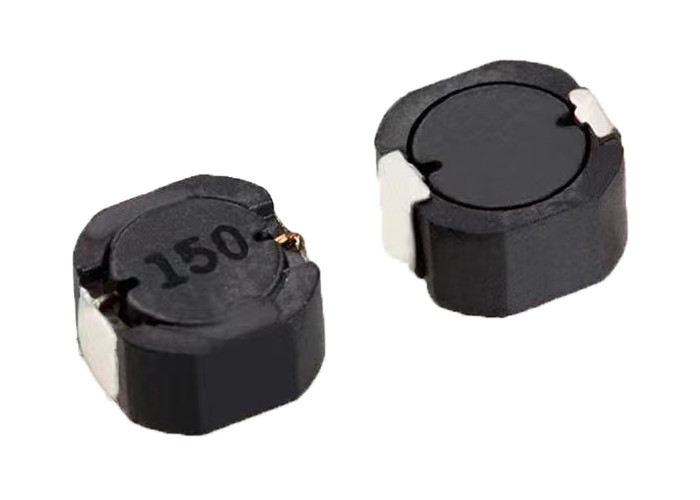

Product picture:
