RM8 Through-hole SMPS Flyback Transformer for power supply 750344354
Applications
- Offline-switch mode power supplies
- Especially designed for several ICs from STMicroelectronics
- Auxiliary power supply
- Home appliances
- Consumer electronics
Characteristics
- Nominal input voltage: 85–265 VAC (120–375 VDC)
- Operating temperature: –40 °C to +125 °C
- Isolation voltage: 2 kVAC up to 5 kVAC
- Multiple output options
- Options for fixed frequency or quasi-resonant mode operation
- Most products meet reinforced insulation
Electrical Properties:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C.RESISTANCE 10-1 | @20℃ | 1.20 ohms ±10% |
| D.C.RESISTANCE 4-7 | (4+5,6+7),@20℃ | 1.20 ohms ±10% |
| D.C.RESISTANCE 3-2 | @20℃ | 0.020 ohms max. |
| INDUCTANCE 10-1 | 100kHz,100mVAC,Ls | 900uH ±10% |
| SATURATION CURRENT 10-1 | 20%rolloff from initial | 950mA |
| LEAKAGE INDUCTANCE 10-1 | tie(2+3+4+5+6+7),100kHz, 100mVAC,Ls | 20uH typ.,40uH max. |
| DIELECTRIC 10-4 | tie(5+6),4000VAC,1 second | 3000VAC,1 minute |
| DIELECTRIC 10-3 | 625VAC,1 second | - |
| TURNS RATI0 | (2-1):(1-6) | 1:1,±1% |
| TURNS RATI0 | (2-6):(5-4) | 6.55:1,±1% |
| TURNS RATI0 | (2-6):(A-B) | 14.4:1,±1% |

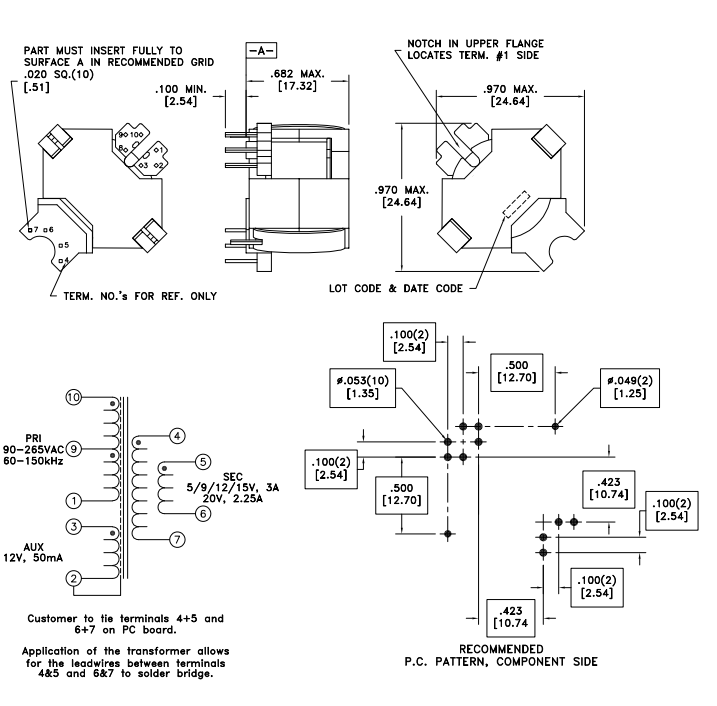

Shape and Dimensions:

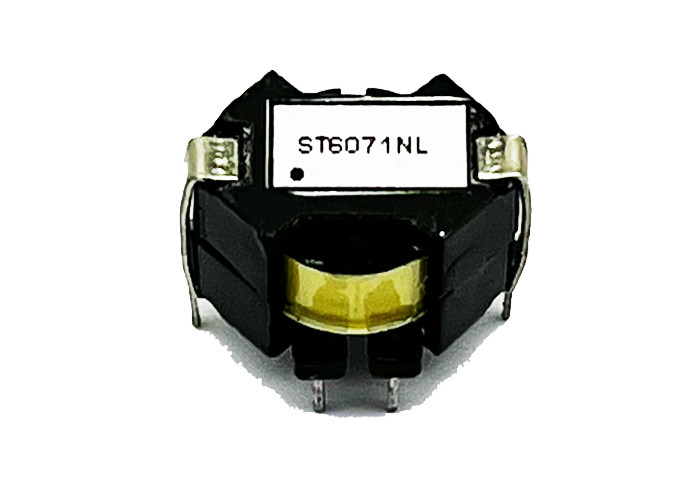

Product picture:
RM8 Through-hole SMPS Flyback Transformer for power supply 750344354
