With 6 identical windings SMPS Flyback Transformer 749197301
Characteristics
- Transformer with 6 identical windings
- Power up to 300 W possible
- Isolation voltage 500 VDC
- Low leakage inductance
- Operating temperature: –40 °C to +125 °C
Applications
All kind of switching regulators
- Flyback converters
- Forward converters
- Push-pull converters
- Step-up/step-down converters
- SEPIC converter
Electrical Properties:
| Properties | | Test conditions | Value | Unit | Tol. |
| Inductance Base 1) | L BASE | 10 kHz/ 100 mV | 326.7 | µH | ±10% |
| Turns Ratio | n | | 1 : 1 : 1 : 1 : 1 : 1 | | |
| Rated Current Base 2) | I R BASE | ΔT = 40 K | 3.2 | A | typ. |
| Saturation Current Base 3) | I SAT BASE | |ΔL/L| < 10 % | 0.2 | A | typ |
| DC Resistance Base 4) | RDC BASE | @ 20 °C | 34 | mΩ | max |
| Leakage Inductance Base | L S Base | 100 kHz/ 100 mV | 0.35 | µH | typ. |
| Insulation Test Voltage 5) | VT | 3 mA/ 1 s | 500 | V (AC) | |

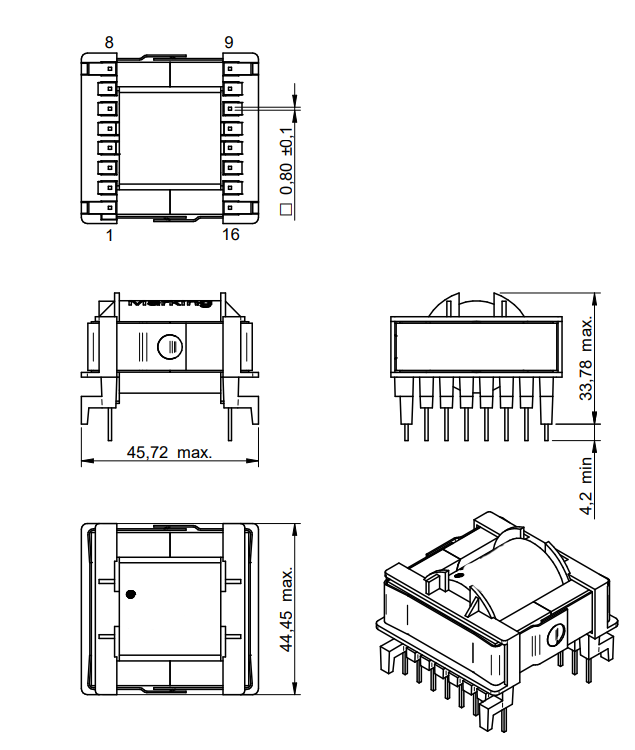

Shape and Dimensions:
Product picture:
With 6 identical windings SMPS Flyback Transformer 749197301
