SMD / SMT Small Signal Transformer FL2810-1L For CCFL Audio Inverter

Name: SMD SMT Small Signal Transformer FL28101L For CCFL Audio Inverter
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : FL2810-1L

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Tray in Carton

Product name : FL2810-1L SMD/SMT CCFL Audio Inverter Small Signal Transformer

Coil Structure : Other

Storage temperature : -25℃ to +85℃

Working frequency : 20kHz-500KHz

Type : Horizontal/ Vertical/SMD

Output power : 0.5 to 10 W

Contact Now

FL2810-1L SMD/SMT CCFL Audio Inverter Small Signal Transformer

Product Feature:
The FL Series of transformers is designed for use in cold cathode fluorescent lamp (CCFL)
power supplies at operating frequencies up to 100 kHz. With output power from 3.5 to 6.0 Watts,
these transformers are ideal for LCD backlight applications. They are available in two different
gull wing, surface mount packages and one inboard configuration for height restricted designs.

Part number	Turns ratio		Output (Watts)	Inductance nom (μH)	Imax sec (mA)	Vrms3		Vinst max4		DCR max (Ohms)
Part number	pri : sec	pri : fb	Output (Watts)	Inductance nom (μH)	Imax sec (mA)	pri	sec	pri	sec	pri	sec	fb
FL2015-1L	1 : 67	1 : 0.19	6.0	43	5.0	22	1600	25.0	2000	0.220	285	0.10
FL2015-2L	1 : 67	1 : 0.19	6.0	43	5.0	23	1600	29.0	2000	0.220	285	0.10
FL2015-3L	1 : 100	1 : 0.25	6.0	19	5.0	16	1600	20.0	2000	0.190	285	0.10
FL2015-4L	1 : 50	1 : 0.14	6.0	44	7.0	32	1600	40.0	2000	0.220	165	0.10
FL2015-5L	1 : 125	1 : 0.38	6.0	20	7.0	12	1600	16.0	2000	0.160	330	0.10
FL2015-6L	1 : 67	1 : 0.19	6.0	48	11.0	23	1600	29.0	2000	0.160	176	0.10
FL2015-7L	1 : 67	1 : 0.19	6.0	50	11.0	23	1600	29.0	2000	0.160	176	0.10
FL2015-8L	1 : 86	1 : 0.21	6.0	31	11.0	18	1600	23.0	2000	0.132	176	0.10
FL2015-9L	1 : 100	1 : 0.25	6.0	22	11.0	16	1600	20.0	2000	0.132	176	0.10
FL2015-10L	1 : 93	1 : 0.25	4.5	40	11.0	17	1600	21.0	2000	0.175	675	0.05
FL3209-1L, FL3209-3L Not recommended for new designs. Order FL3209-5L, which is electrically equivalent.
FL3209-2L, FL3209-4L Not recommended for new designs. Order FL3209-6L, which is electrically equivalent.
FL3209-5L	1 : 100	-	3.5	48	5.0	16	1600	20.0	2000	0.350	362	-
FL3209-6L	1 : 93	1 : 0.17	3.5	40	5.0	17	1600	21.0	2000	0.400	800	0.08
FL2810-1L	1 : 100	-	4.5	3.5	7.0	15	1500	16.5	1650	0.220	500	-

Inductance is measured across both halves of the primary.
Vrms = continuous voltage.
Vinst = instantaneous voltage at startup.
Ambient temperature range: −40°C to +85°C.
Storage temperature range: Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C
Electrical specifications at 25°C

FL2810-1L SMD/SMT CCFL Audio Inverter Small Signal Transformer

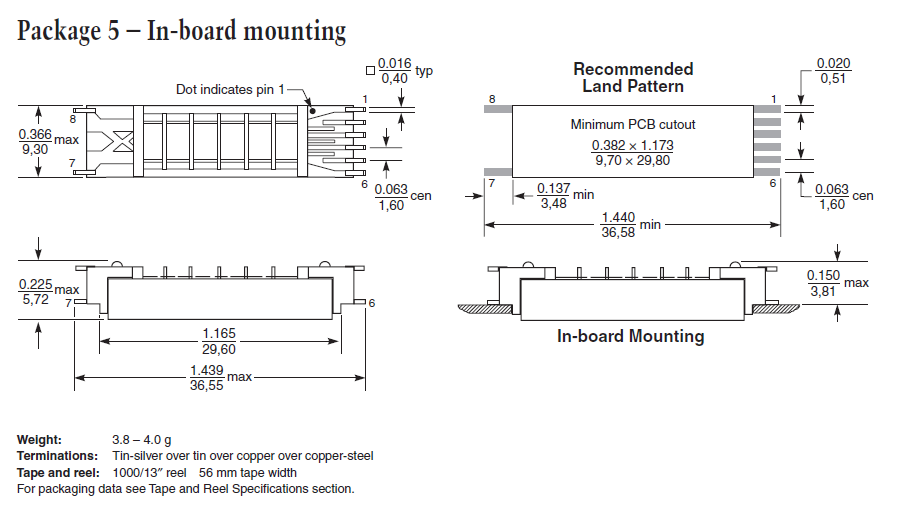

Shape and Dimensions:

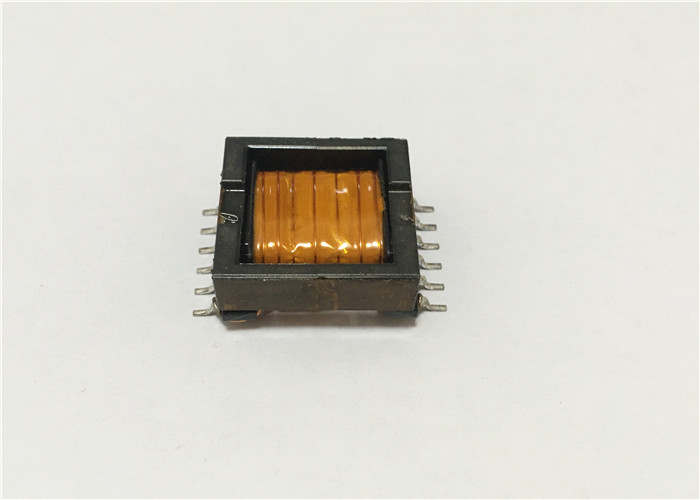

Product Picture:
