ST85127NL = 78615/2JC 1kVrms Isolation Low Profile Transformer 6 Pin SMD
DESCRIPTION:
The ST85xxxNL series is a comprehensive range of general-purpose pulse transformers. Common
applications include line coupling, and matching for isolating. The devices can also be used in small
isolated power supplies and also as common mode chokes in filtering applications.
FEATURES:
- RoHS compliant
- 4 Configurations
- Primary inductance to 10mH
- 1kVrms isolation
- Industry standard pinout
- Industry standard pinout
- UL 94 V-0 package materials
- Low profile
- Toroidal construction
- Fully encapsulated
| Trader Part Number | Turns
Ratio | Min.
Primary Inductance | Primary Min.
Volt-time
Product, Et | Typ.
Leakage
Inductance | Typ.
Interwinding
Capacitance | Max.
DC
Resistance | Isolation
Voltage |
| μH | Vμs | μH | pF | Ω | Vrms |
| 78604/4C | 2:1 | 67 | 4 | 0.41 | 4 | 0.18 | 1000 |
| 78604/3C | 2:1 | 200 | 6 | 0.49 | 9 | 0.25 |
| 78604/2C | 2:1 | 500 | 10 | 0.65 | 13 | 0.34 |
| 78604/8C | 2:1 | 1000 | 15 | 0.76 | 20 | 0.46 |
| 78604/1C | 2:1 | 2000 | 20 | 0.99 | 29 | 0.60 |
| 78604/16C | 2:1 | 4000 | 28 | 1.61 | 50 | 0.85 |
| 78604/9C | 2:1 | 10000 | 56 | 1.64 | 72 | 1.23 |
| 78613/4C | 1CT:1 | 67 | 4 | 0.30 | 7 | 0.20 |
| 78613/3C | 1CT:1 | 200 | 6 | 0.65 | 12 | 0.25 |
| 78613/2C | 1CT:1 | 500 | 10 | 1.07 | 20 | 0.36 |
| 78613/8C | 1CT:1 | 1000 | 15 | 1.13 | 35 | 0.48 |
| 78613/1C | 1CT:1 | 2000 | 20 | 1.53 | 47 | 0.63 |
| 78613/16C | 1CT:1 | 4000 | 28 | 1.98 | 64 | 0.88 |
| 78613/9C | 1CT:1 | 10000 | 56 | 3.83 | 72 | 1.33 |
| 78615/4C | 1CT:1CT | 67 | 4 | 1.21 | 3 | 0.17 |
| 78615/3C | 1CT:1CT | 200 | 6 | 3.64 | 5 | 0.24 |
| ST85127NL= 78615/2JC | 1CT:1CT | 500 | 10 | 6.86 | 7 | 0.34 |
| 78615/8C | 1CT:1CT | 1000 | 15 | 11.9 | 10 | 0.45 |
| 78615/1C | 1CT:1CT | 2000 | 20 | 16.0 | 16 | 0.60 |
| 78615/16C | 1CT:1CT | 4000 | 28 | 37.7 | 20 | 0.87 |
| 78615/9C | 1CT:1CT | 10000 | 56 | 44.5 | 19 | 1.33 |
The Dimension of the ST85127NL = 78615/2JC 1kVrms Isolation Low Profile Transformer 6 Pin SMD

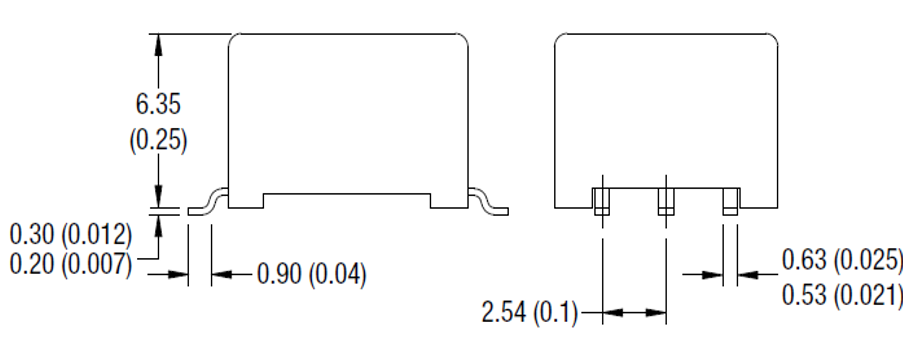

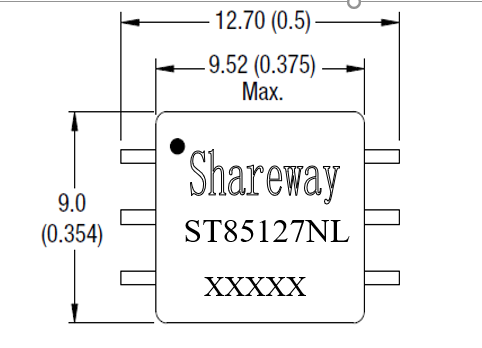

Shape and Dimensions:
Product Picture:
