Product name : B78384P9607A005 =ST6071NL 2.0 H Min. RM5 PTH Transformer with 1:1 Turns Ratio

Application : Electronic

Type : 1:1 Isolation

Mount : Through Hole

Pin : 2+2

Inductance : 2.0H Min

Contact Now

ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE 1-2 @25°C 60 ohms max
D.C RESISTANCE 3-4 @2°C 80 ohms max
INDUCTANCE (1-2) =(3-4) 10KHz, 1V 2.0 H min
DIELECTRIC (1-2) to (3-4) 50 Hz/ 1s 500 Vrms
TURNS RATIO (1-2):(3-4) 1:1

GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C including temp rise.
  • CURRENT RATING: 150mAAC
  • VOLTAGE- TIME: 11VuS
  • Complies with the following requirernents as defined by IEC60601-1(ed):aml: -Providing two means of Patient Protection up to a working voltage of 250VAC.
  • 8mm minimun creepage & clearance distance between PRI & SEC.
  • Complies with the following requirernents as defined by IEC60950-1,EN60950-1,UL60950-1/ CSA-60950-1 and AS/NZS60950-1: -Reinforced insulation for a primary circuit at a working voltage of 250VAC, overvoltage Category II,pollution Degree 2 ,up to 2Km above sea level.
  • Designed to comply with the following requirements as defined by IEC60664-1: -Reinforced insulation for a primary circuit at a working voltage of 400VAC up to 2Km above sea level.
  • Qualified to AEC-Q200.

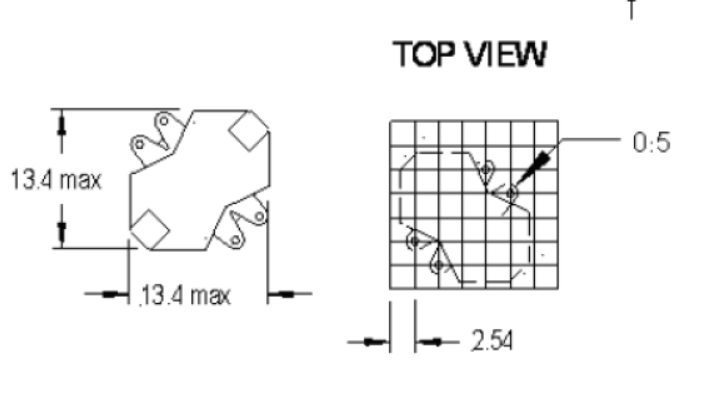

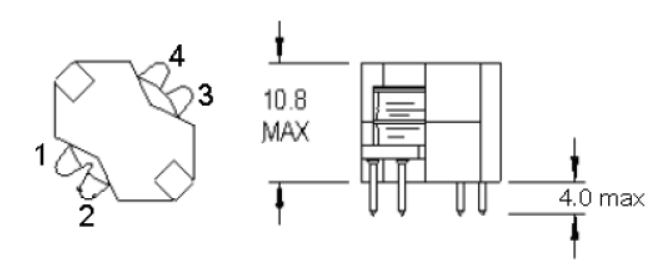

Dimensions of Schematic of B78384P9607A005 =ST6071NL 2.0 H Min. RM5 PTH Transformer with 1:1 Turns Ratio

2.0 H Min. RM5 PTH Transformer With 1:1 Turns Ratio B78384P9607A005 =ST6071NL

2.0 H Min. RM5 PTH Transformer With 1:1 Turns Ratio B78384P9607A005 =ST6071NL

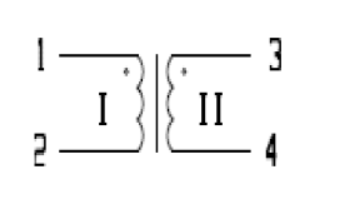

Schematic of B78384P9607A005 =ST6071NL 2.0 H Min. RM5 PTH Transformer with 1:1 Turns Ratio

2.0 H Min. RM5 PTH Transformer With 1:1 Turns Ratio B78384P9607A005 =ST6071NL
