Magnetic RJ45 Modular Jack 12 Pins 100 Base -T JXK0-0125NL POE/POE+ Application

Name: Magnetic RJ45 Modular Jack 12 Pins 100 Base T JXK00125NL POEPOE Application
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : JXK0-0125NL

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : 100Base-T RJ45 Magnetic JXK0-0125NL For POE/POE+/POE++ Application

Inductance : 350uh min

Size : 33.02x16.79x13.87mm

Pin No. : 12 Pins

Core No. : 2

Led : Green/Yellow

Contact Now

100Base-T RJ45 Magnetic JXK0-0125NL For POE/POE+/POE++ Application

Material Specifications :
* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.
* Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.
* PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel
* Housing: Reinforced FR PA66-B30 UL94V-0.
* Metal Shell: Copper Alloy, Nickel Plated
* Case: Phenolic, UL94V-0 Black..

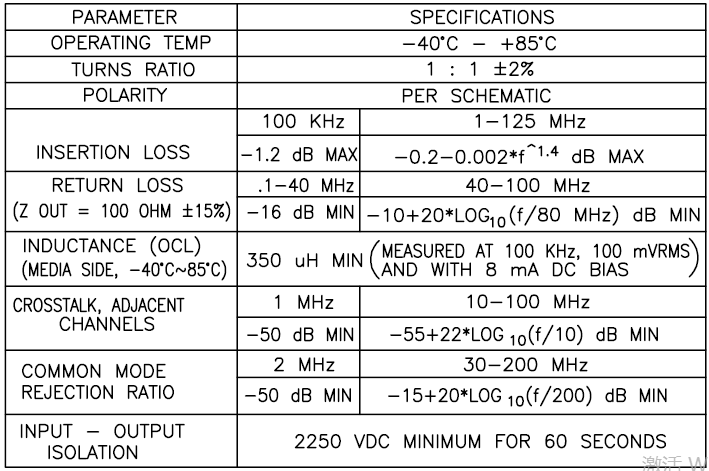

Specification:

Magnetic RJ45 Modular Jack 12 Pins 100 Base -T JXK0-0125NL POE/POE+ Application

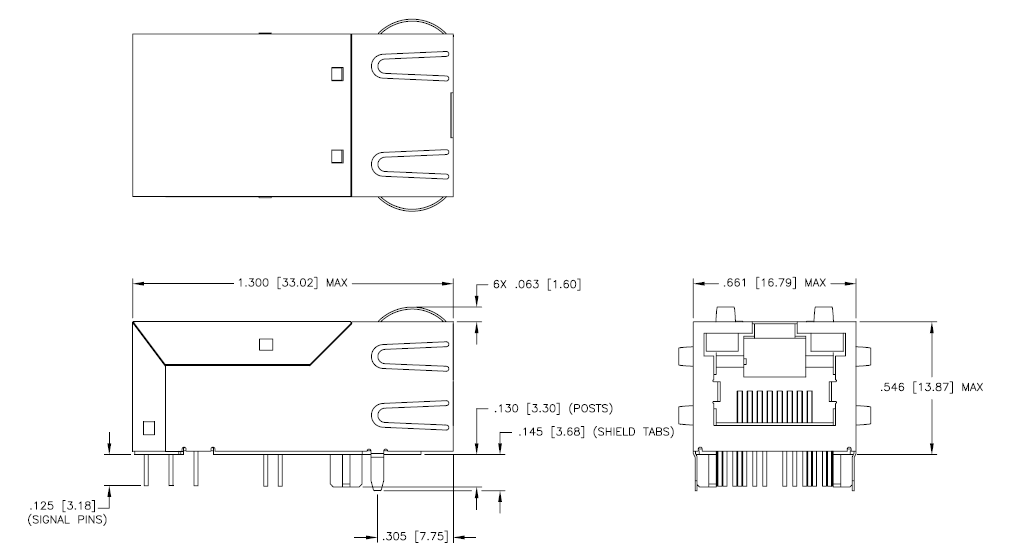

Dimensions:
