Alarm System High Current Inductor Flat Line SMD/SMT Mount LPE4841ER103NU

Brand Name : Shareway

Model Number : LPE4841ER103NU

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : SMD/SMT Flat line high current inductor LPE4841ER103NU for Alarm system

Application : Alarm system

Inductor : Flat line high current inductor

Mount : SMD/SMT

Inductance : 10uH to 47000uH

Rated Current Range : 2.00 A to 0.09 A

Contact Now

SMD/SMT Flat line high current inductor LPE4841ER103NU for Alarm system

Feature:

  • High rated cattent & low DCR, Quadrate
  • Magenetically shielded construction.
  • Suitable for reflow SMT craft soldering.
  • Widely use in Digital camera & Scanner/DC-DC Converter/Power supply for VTR /LCD Monitor/Portable terminal equipment/Notebook/PC and Perpheral epuipments etc

MODEL IND.
(μH)		 IND.
TOL.		 DCR MAX.
(Ω)		 MAX. RATED DC CURRENT
(A) (1)		 SATURATING CURRENT
(A) (2)
LPE4841ER103NU 10 000 ± 30 % 5.29 0.16 N/A
LPE4841ER153NU 15 000 ± 30 % 6.48 0.14 N/A
LPE4841ER223NU 22 000 ± 30 % 13.1 0.10 N/A
LPE4841ER333NU 33 000 ± 30 % 16.0 0.09 N/A
LPE4841ER473NU 47 000 ± 30 % 19.1 0.08 N/A
LPE4841ER100MG 10 ± 20 % 0.03 2.03 2.320
LPE4841ER150MG 15 ± 20 % 0.04 1.84 1.925
LPE4841ER220MG 22 ± 20 % 0.07 1.32 1.610
LPE4841ER330MG 33 ± 20 % 0.09 1.20 1.330
LPE4841ER470MG 47 ± 20 % 0.13 0.98 1.125
LPE4841ER680MG 68 ± 20 % 0.21 0.79 0.941

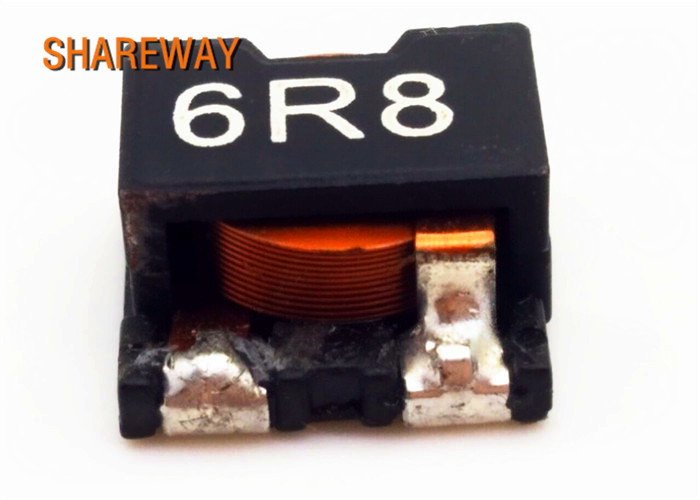

Picture:

Alarm System High Current Inductor Flat Line SMD/SMT Mount LPE4841ER103NU
