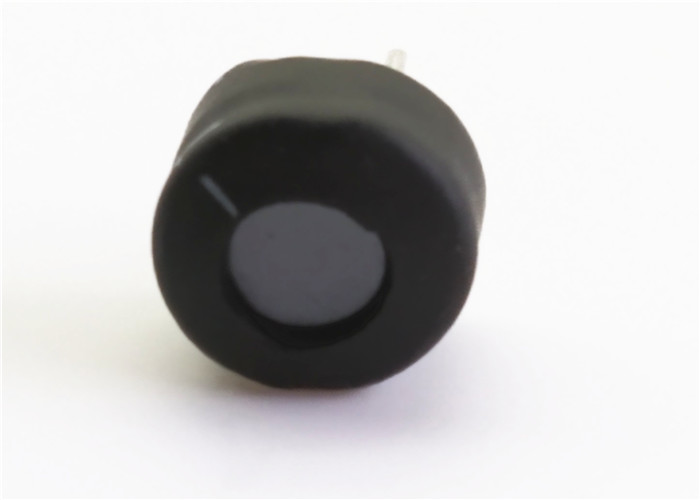

Power Supply High Frequency Power Inductor 1410313C Through Hole Bobbin Type 2 Pins

Brand Name : Shareway

Model Number : 1410313C

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : Radial format 1410313C Through hole Bobbin Type Inductors for power supply

Mounting Type : Through hole

Type : Bobbin Type Inductors

Application : Power supply

Pin : 2 PINS

Samples : Free

Contact Now

Radial format 1410313C Through hole Bobbin Type Inductors for power supply

Description:

Inductance,
(1kHz, 0.1VAC)

DC

Current

DC

Resistance

 Q at f kHz Q at f kHz SRF Mechanical Dimensions Mechanical Dimensions Mechanical Dimensions Mechanical Dimensions Mechanical Dimensions Footprint Footprint
±10% Max. Max. Nom. Nom. Nom. a b c d Øe f Øg
Part No. μH A Ω Q f MHz mm mm mm mm mm mm mm
1410313C 10 ±15% 13 0.009 54 50 20.7 27.0 24.4 14.0 1.30 5.5 23.9 2.6
1415312C 15 ±15% 12 0.009 42 50 12.7 27.0 24.4 14.0 1.30 5.5 23.9 2.6
1422311C 22 ±15% 11 0.014 64 100 9.3 27.0 24.4 14.0 1.30 5.5 23.9 2.6
1433393C 33 ±15% 9.3 0.017 27 50 9.1 27.0 24.4 14.0 1.30 5.5 23.9 2.6
1447383C 47 ±15% 8.3 0.019 40 100 6.0 27.0 24.4 18.5 1.30 5.5 23.9 2.6
1447385C 47 ±15% 8.5 0.021 33 100 6.7 26.8 24.4 14.0 1.20 5.5 23.8 2.4
1468362C 68 ±15% 6.2 0.032 32 100 5.3 26.5 24.4 14.0 1.08 5.5 23.7 2.1
1468373C 68 ±15% 7.3 0.025 45 100 5.3 27.0 24.4 18.5 1.30 5.5 23.9 2.6
1410454C 100 5.4 0.046 24 100 4.6 26.4 24.4 14.0 1.02 5.5 23.6 2.0
1410460C 100 6.0 0.033 37 100 3.9 26.8 24.4 18.5 1.20 5.5 23.8 2.4
1410478C 100 7.8 0.040 34 50 3.3 32.4 29.8 21.8 1.30 5.1 29.3 2.6
1415440C 150 4.0 0.069 24 50 3.4 26.2 24.4 14.0 0.90 5.5 23.5 1.8
1415449C 150 4.9 0.055 34 50 2.9 26.4 24.4 18.5 1.02 5.5 23.6 2.0
1415465C 150 6.5 0.042 46 100 2.4 32.2 29.8 21.8 1.20 5.1 29.2 2.4
1422435C 220 3.5 0.096 22 50 2.8 26.1 24.4 14.0 0.85 5.5 23.5 1.7
1422441C 220 4.1 0.073 33 100 2.3 26.3 24.4 18.5 0.97 5.5 23.6 1.9
1422455C 220 5.5 0.062 30 50 2.2 32.1 29.8 21.8 1.14 5.1 29.1 2.2
