Network Router SMD Ethernet Lan Transformer Open Frame Construction S558-5500-67

Name: Network Router SMD Ethernet Lan Transformer Open Frame Construction S558550067
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : S558-5500-67

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : S558-5500-67 SMD Ethernet Lan Transformer For Network Router

Usage : Network Router

Turns Ratio RX : 1CT:1CT

Cores Per Port : 4/6/8/12

Construction : OPEN FRAME

AutomDX : YES

Contact Now

S558-5500-67 SMD Ethernet Lan Transformer For Network Router

Description:

Pulse transformers for LAN applications transmit pulse signals through LAN cables with networking equipment and audiovisual equipment. They protect the circuits of these devices by blocking electrostatic discharges and high-voltage transients due to insulation between the primary and secondary windings.
Although they have low total harmonic distortion, they are compliant with 10/100/1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T LAN systems as well as PoE (Power Over Ethernet).
While the wire windings of conventional pulse transformers are produced manually, TDK’s new pulse transformers are manufactured with a compact SMT design using an automatic winding and assembly technology. As a result they feature stable electrical characteristics and take up less space.

Part number	S558-5500-67
Transformer	Lan Transformer
Type	SMD
Usage	Network Router
Speed	10/100/1000BASE-T

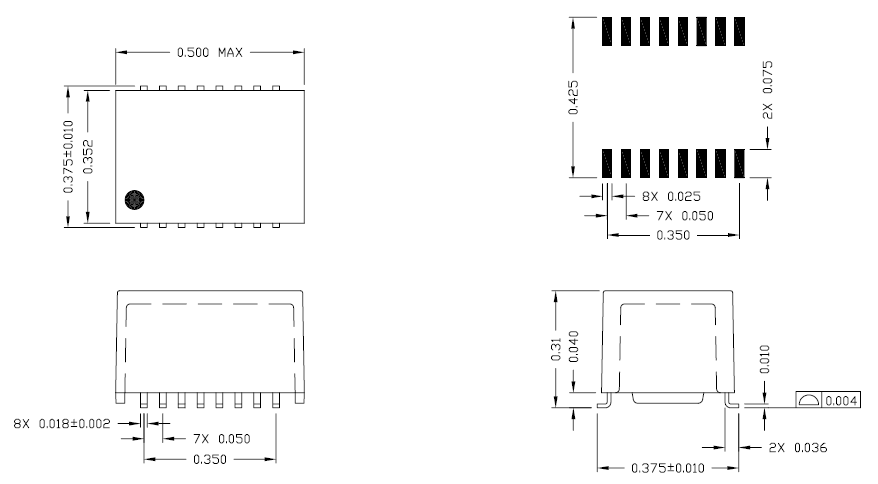

Dimension:

Network Router SMD Ethernet Lan Transformer Open Frame Construction S558-5500-67
