Mini Circuits Transformer Microwave RF Flux Coupled Balun RFT-058SG Single Phase

Brand Name : Shareway

Model Number : RF, Coupler, Power spliter

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Part number : RFT-058SG Mini-Circuits Microwave RF Flux Coupled Balun transformer

Phase : Single

Material : Ferrite Ni-ZN

Coil Structure : Toroidal

Usage : Communication

Contact Now

RFT-058SG Mini-Circuits Microwave RF Flux Coupled Balun transformer

Electrical Specifications @25°C-Operating Temperature -40°C to+85°C

Part
Number		 System
Impedance		 Impedance Ratio
Pri:Sec

Bandwidth(MHz Max)

3dB

Bandwidth(MHz Max)

2dB

Bandwidth(MHz Max)

1dB
RFT-058SG 50 1:1 0.005-100 --- ---
RFT-059SG 75 1:1 2 --- 4-20
RFT-060SG 75 1:1 --- --- ---
RFT-061SG 75 1:1 --- --- 46-1002
RFT-062SG 50&75 1:4 --- 5-1000 50-879
RFT-063SG 50 9:1:9 --- --- ---
RFT-064SG 50 1:1:1:4 --- 1.8-90 ---
RFT-065SG 75 1:1 --- --- 1-400
RFT-066SG 50 1:4 --- 40-1000 ---
RFT-068SG 75 1:1 0.4-800 0.5-700 1-400
RFT-069SG 50 1:1 2-70 --- ---

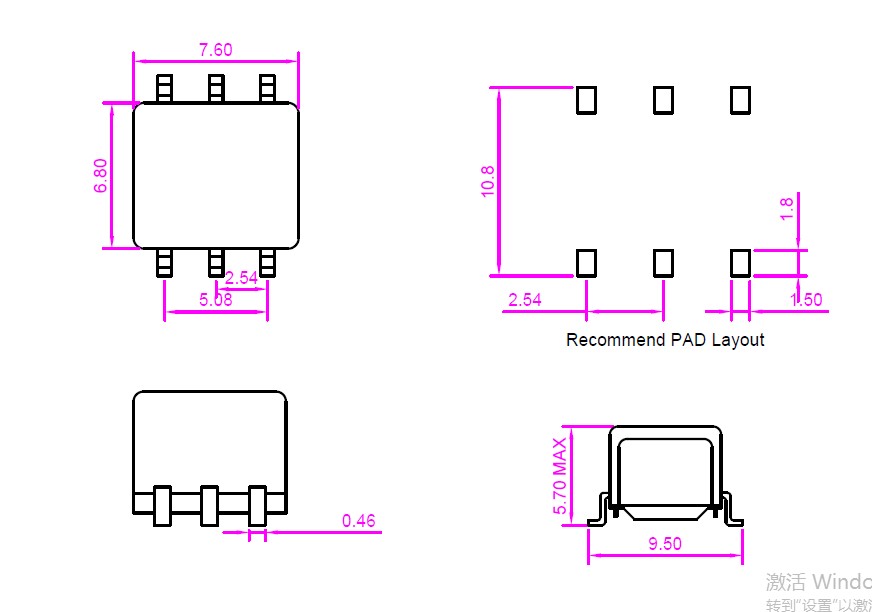

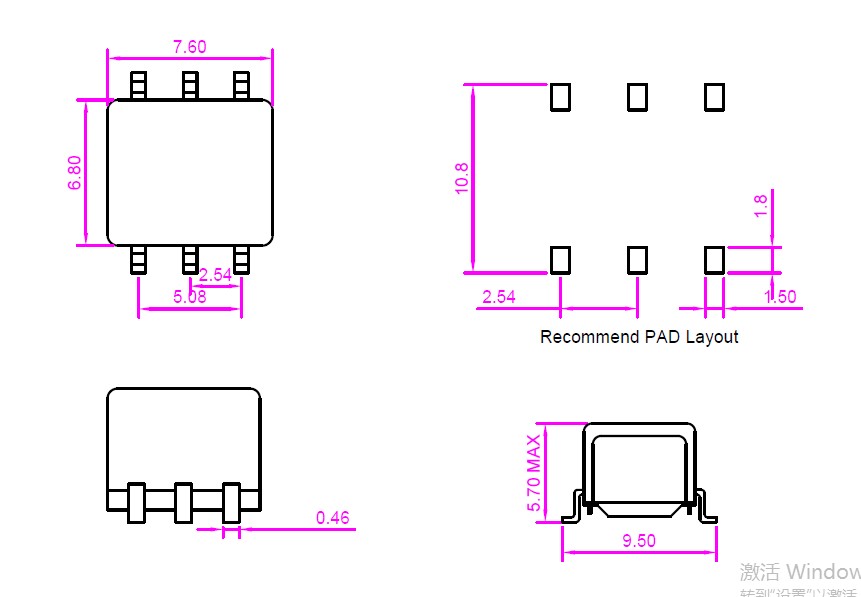

Dimensions:

Mini Circuits Transformer Microwave RF Flux Coupled Balun RFT-058SG Single Phase

Mini Circuits Transformer Microwave RF Flux Coupled Balun RFT-058SG Single Phase
