Name: Unshielded Shielded High Power SMD Chip Inductor NRV2012T2R2MGF V Type Durable
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : NRV2012T2R2MGF

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Part number : NRV2012T2R2MGF Shielded/ Unshielded High Power SMD Chip Inductor

Series : NR series

Type : V type

Inductance : 2.2 uH ± 20 %

Case Size : 2.0x2.0 mm

Rated Current : 1.2 A

Contact Now

NRV2012T2R2MGF Shielded/ Unshielded High Power SMD Chip Inductor

Description:

Brand	Shareway
Part number	NRV2012T2R2MGF
Inductance	2.2 uH ± 20 %
Case Size (mm)	2.0x2.0
Rated Current (max)	1.2 A
Saturation Current (max)	1.6 A (⊿L=30%)
Saturation Current (typ)	1.7 A (⊿L=30%)
Temperature Rise Current (max)	1.2 A (⊿T=40℃)
Temperature Rise Current (typ)	1.35 A (⊿T=40℃)
DC Resistance (max)	0.1548 Ω
DC Resistance (typ)	0.129 Ω
LQ Measuring Frequency	100 kHz
Operating Temp. Range	-25 to +120 ℃ (Including-self-generated heat)
Temperature characteristic (Inductance change)	± 20 %
RoHS Compliance (10 subst.)	Yes

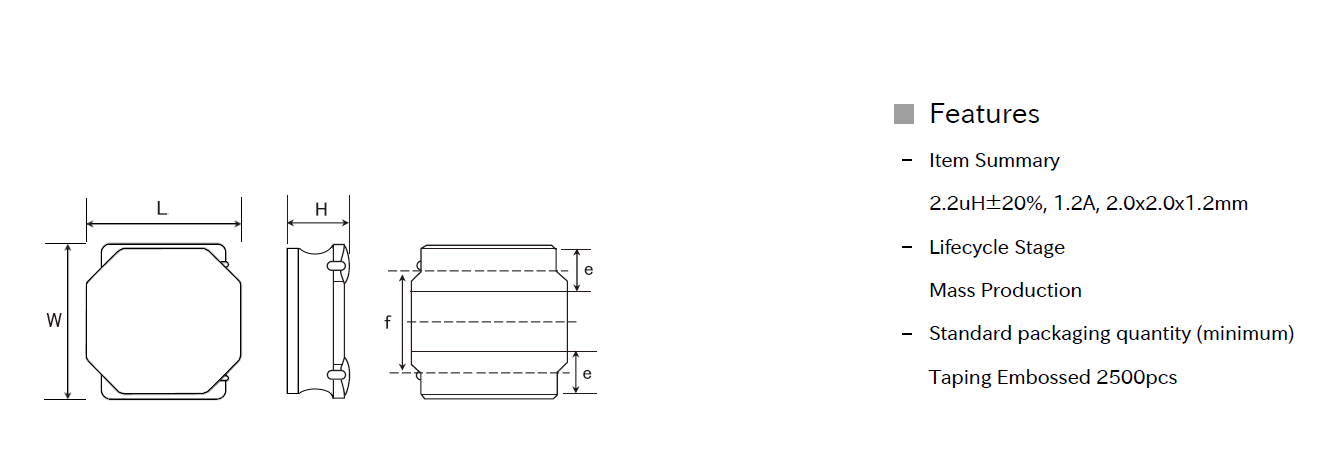

Dimensions:
