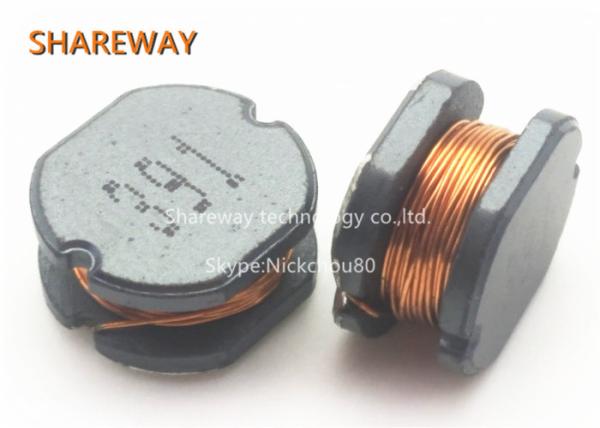

Integrated SMD Power Inductor Low DC Resistance SC54-100 For Car Electronics

Name: Integrated SMD Power Inductor Low DC Resistance SC54100 For Car Electronics
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : SC54-100

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : SC54-100 Low DC Resistance Integrated SMD Power Inductor For Car Electronics

Usage : Car Electronics

DC : Low DC Resistance

Feature : Integrated

Inductance : 10 to 220uH

Test Frequency : 2.52MHZ

Contact Now

SC54-100 Low DC Resistance Integrated SMD Power Inductor For Car Electronics

Description:

(1). Inductance tolerance ±20% tested at 0.25V, 0ADC and 25℃.
(2). DCR measured at 25℃.
(3). The DC current at which the inductance decreases by 10% from its initial value.
(4). The DC current that results in a 40℃ temperature rise from 25℃ ambient.

Electrical Chareristics:

Part Number	Inductance (uH)	Test Frequency	DC Resistance (Ω MAX)	Saturation Current (A)	Temperature Current (A)
SC54-100	10	2.52MHZ	0.10	1.44	2.20
SC54-120	12	2.52MHZ	0.12	1.40	1.98
SC54-150	15	2.52MHZ	0.14	1.30	1.76
SC54-180	18	2.52MHZ	0.15	1.23	1.65
SC54-220	22	2.52MHZ	0.18	1.11	1.45
SC54-270	27	2.52MHZ	0.20	0.97	1.30
SC54-330	33	2.52MHZ	0.23	0.88	1.20
SC54-390	39	2.52MHZ	0.32	0.80	1.10
SC54-470	47	2.52MHZ	0.37	0.72	1.00
SC54-560	56	2.52MHZ	0.42	0.68	0.86
SC54-680	68	2.52MHZ	0.46	0.61	0..78
SC54-820	82	2.52MHZ	0.60	0.58	0.70
SC54-101	100	1KHZ	0.70	0.52	0.64
SC54-121	120	1KHZ	0.93	0.48	0.58
SC54-151	150	1KHZ	1.10	0.40	0.54
SC54-181	180	1KHZ	1.38	0.38	0.52
SC54-221	220	1KHZ	1.57	0.35	0.48
