SMD Power Inductor MOX-UPI-1511 SERIES For LED driver applications

Name: SMD Power Inductor MOXUPI1511 SERIES For LED driver applications
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : MOX-UPI-1511 SERIES

Certification : RoHS,CE,UL

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : SMD Power Inductor MOX-UPI-1511 SERIES For LED driver applications

Application : LED driver applications

Size : 15*18.4*11.5mm

Inductance : 47 - 10000uH

Operating temperature : -55°C to +125°C.

Storage temperature : -55°C to +125°C

Contact Now

SMD Power Inductor MOX-UPI-1511 SERIES For LED driver applications

Description:

Surface Mount High Current Unshielded Power Inductors
MOX-UPI-1511 series of surface mount high current power inductors
are specially engineered for high current, low voltage DC-DC converter & LED
driver applications. The industrial grade rugged design provides current ranges
normally only available with larger packages

Features:
• Low cost.
• High current & low voltage.
• RoHS compliant.

ELECTRICAL SPECIFICATIONS @ 25°C

Part Number	Inductance (μH)	Tolerance (±)	Test Frequency	RDC (mΩ) Max.	ISAT (Amps)	Irms (Amps)
MOX-UPI-1511-470M	47.00	20%	1V/100KHz	54.00	5.40	3.80
MOX-UPI-1511-680M	68.00	20%	1V/100KHz	74.00	4.50	3.20
MOX-UPI-1511-101M	100.00	20%	1V/100KHz	123.00	6.80	2.60
MOX-UPI-1511-151M	150.00	20%	1V/100KHz	188.00	3.10	2.10
MOX-UPI-1511-221M	220.00	20%	1V/100KHz	278.00	2.60	1.70
MOX-UPI-1511-331M	330.00	20%	1V/100KHz	368.00	2.10	1.50
MOX-UPI-1511-471M	470.00	20%	1V/100KHz	505.00	1.70	1.25
MOX-UPI-1511-681M	680.00	20%	1V/100KHz	795.00	1.50	1.05
MOX-UPI-1511-102M	1000.00	20%	1V/100KHz	1100.00	1.20	0.85
MOX-UPI-1511-152M	1500.00	20%	1V/100KHz	1590.00	1.00	0.65
MOX-UPI-1511-222M	2200.00	20%	1V/100KHz	2250.00	0.85	0.55
MOX-UPI-1511-332M	3300.00	20%	1V/100KHz	3580.00	0.70	0.45
MOX-UPI-1511-472M	4700.00	20%	1V/100KHz	5190.00	0.60	0.40
MOX-UPI-1511-682M	6800.00	20%	1V/100KHz	7680.00	0.50	0.35
MOX-UPI-1511-103M	10000.00	20%	1V/100KHz	10900.00	0.40	0.30

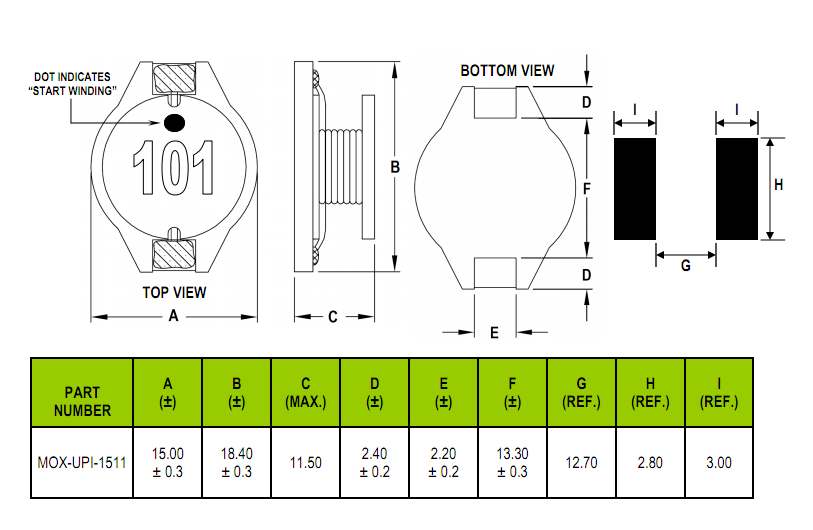

Dimensions:
