RFT-045SG RF Transformer 1.5:1 Turns Ratio for Low-Power Electronic

Brand Name : Shareway

Model Number : RFT-045SG

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : RFT-045SG RF Transformer 1.5:1 Turns Ratio for Low-Power Electronic

Usage : Low-Power Electronic

Turns Ratio : 1.5:1

Transformer : RF Transformer

System Impedance : 50

Size : 3.81x3.81x2.79mm

Contact Now

RFT-045SG RF Transformer 1.5:1 Turns Ratio for Low-Power Electronic

Electrical Specifications @25°C-Operating Temperature -40°C to+85°C

Part
Number		 System
Impedance		 Impedance Ratio
Pri:Sec

Bandwidth(MHz Max)

3dB

Bandwidth(MHz Max)

2dB

Bandwidth(MHz Max)

1dB
RFT-045SG 50 1.5:1 0.5-550 1-350 2-200
RFT-046SG 75 1:1 0.4-500 ---
RFT-047SG 50 1:4 0.245-425 0.475-350 5.5-215
RFT-048SG 50 1:4 500-2500 700-1500 750-1200
RFT-049SG 50 1:3 --- 2-500 5-300
RFT-051SG 50 1:1 --- --- ---
RFT-052SG 75 1:1 --- --- 5-1800
RFT-054SG 50 1:1 0.05-200 0.08-150 0.2-80
RFT-055SG 50 1:4 0.14-700 0.2-400 0.4-150
RFT-056SG 75 4:9 5-100 --- ---
RFT-057SG 75 1:1 --- 5-100 ---

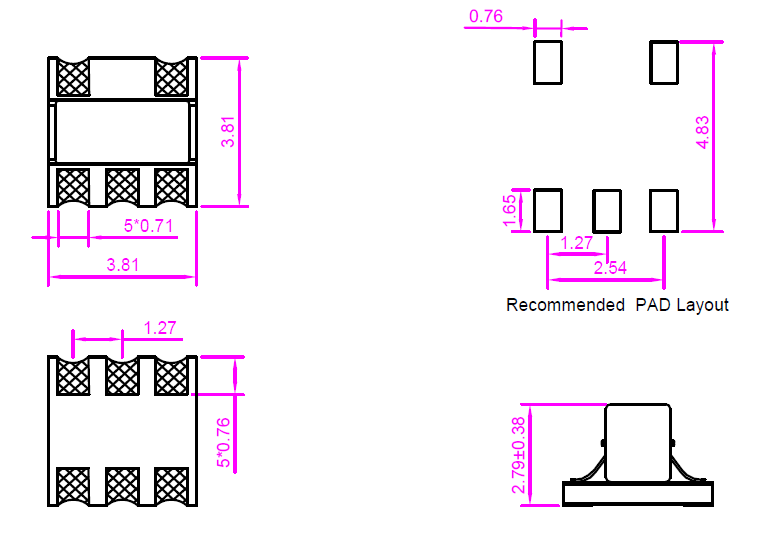

Dimensions:
