1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

Brand Name : Shareway

Model Number : 1812WBT1.5-3L

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 2200/reel

Product name : 1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

Base : Ceramic base

Storage temperature : –40°C to +85°C

Inductance : 1.0uH

Test freq : 10MHz

DCR : 0.43

Contact Now

1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

Feature:

  • Provides wide band pass performance in a small SMT package.
  • 1812 size ferrite body with a ceramic base.
  • 50 V isolation, 1/4 Watt RF input power

Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Product Name
1812WBT1.5-2L_ Surface Mount SMPS Flyback Transformer with Rohs
Material
gold over nickel over moly-manganese.
Color
Orange
Standard
high power density
Grade
High-temperature resistant
Temperature grade
Operating temperature -40℃to+125℃
Thread
coarse, fine
Used
Suitable for wide range of switching power supply / power transformer/ LED driver transformer/current transformer/distribuition transforme

Part

number

Inductance

(μH)

Test frequency

(MHz)

Imp. ratio

pri : sec

 DCR max

IDC

(mA)

Isolation

(Vrms)

Insertion

loss (dB)

Bandwidth

(MHz)

Color

dot
pri sec pri sec
1812WBT1.5-1L_ 5.0 3.3 10 1.5 : 1 1.05 0.87 400 50 <0.5 1.3–100 Red
1812WBT1.5-2L_ 2.5 1.6 10 1.5 : 1 0.74 0.58 500 50 <0.5 2.75–135 Orange
1812WBT1.5-3L_ 1.0 0.60 50 1.5 : 1 0.43 0.34 500 50 <0.75 7.2–200 Yellow
1812WBT1.5-4L_ 0.144 0.090 50 1.5 : 1 0.18 0.14 700 50 <2.25 38–535 Green

1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

Shape and Dimensions:

1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

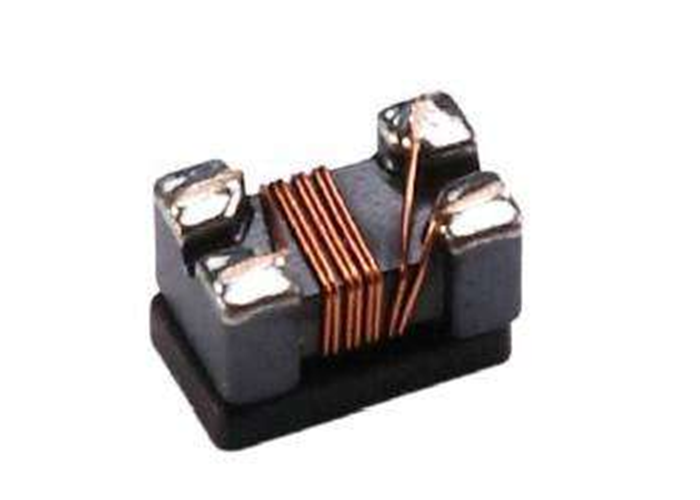

Product picture:

1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer


Product Tags:

Ceramic Base Small Flyback Transformer



0.43 DCR SMPS Flyback Transformer



Core Ferrite SMPS Flyback Transformer


1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base Manufactures

1812WBT1.5-3L Core Ferrite SMPS Flyback Transformer With A Ceramic Base Images
