H7008NL Ethernet Lan Transformer 13.712.25.72 Filter Module / Low Profile

Name: H7008NL Ethernet Lan Transformer 137122572 Filter Module Low Profile
Brand: Shareway
Price: 1 USD

Model Number : H7008NL

Brand Name : Shareway

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel ,Tube

Category : Datacom Transformer

Turns Ratio : 1:1

Mounting Type : Surface Mount

Dimension : 13.7*12.2*5.72mm

Inductance : 350µH

Product name : 13.7*12.2*5.72 Filter Module/Low Profile H7008NL Ethernet Lan Transformer

Contact Now

13.7*12.2*5.72 Filter Module/Low Profile H7008NL Ethernet Lan Transformer

Description:

Speed: 1000BASE-T

Number of Ports: SINGLE

Application - LAN: ETHERNET (NoN PoE)

Package: SMD

Temperature: 0 TO + 70

Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.54
Package Height (mm) 13.7
Package Length (Inches) 0.48
Package Length (mm) 12.2
Package Width (Inches) 0.225
Package Width (mm) 5.72
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

13.7*12.2*5.72 Filter Module/Low Profile H7008NL Ethernet Lan Transformer

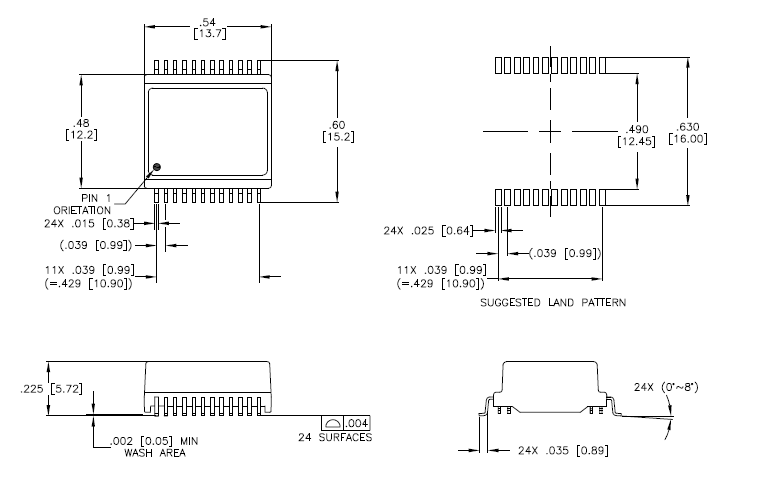

Shape and Dimensions:
