Large Currents SMD Power Inductor Shielded 1273AS-H-1R5N=P3 / 1248AS-H-1R5N=P3

Brand Name : Shareway

Model Number : 1273AS-H-1R5N=P3 / 1248AS-H-1R5N=P3

Certification : RoHS,CE,UL

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : 1273AS-H-1R5N=P3 / 1248AS-H-1R5N=P3 power inductor for large currents.

Feature : large currents

Type : power inductor

Shield : shielded

Material : Halogen Free

Inductance : 1.5 -47uH

Contact Now

1273AS-H-1R5N=P3 / 1248AS-H-1R5N=P3 power inductor for large currents

Description:

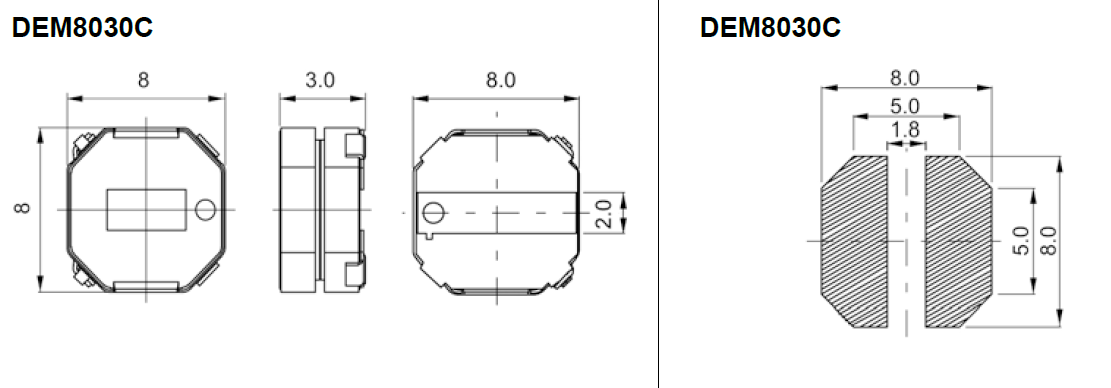

• 8.3× 8.3mm Max. square, 3.0, 4.0, and 4.5mm Max. height.
• Magnetically shielded construction and low DC resistance.
• Suitable for large currents.
• RoHS compliant.
• Halogen Free

Part
Number		 Inductance
(μH)		 Tolerance
(%)		 DC
Resistance
(mΩ) Max. (Typ.)		 Inductance
Decrease Current(3)
(A) Max. (Typ.)
=30%		 Temperature
Rise Current(3)
ΔT=40°C
(A) Max. (Typ.)
1273AS-H-1R5N=P3 1.5 ±30 10.0 (8.3) 7.5(10) 7.3(8.6)
1273AS-H-2R2N=P3 2.2 ±30 13.2 (11) 6.2(8.2) 6.5(7.7)
1273AS-H-3R3N=P3 3.3 ±30 19.2 (16) 5.2(6.9) 5.4(6.3)
1273AS-H-4R7N=P3 4.7 ±30 22.8 (19) 4.4(5.9) 4.9(5.8)
1273AS-H-6R8N=P3 6.8 ±30 37.2 (31) 3.4(4.5) 3.7(4.4)
1273AS-H-100M=P3 10 ±20 54.0 (45) 2.9(3.8) 3.1(3.6)
1273AS-H-150M=P3 15 ±20 78.0 (65) 2.4(3.2) 2.6(3.1)
1273AS-H-220M=P3 22 ±20 126.0 (105) 2.0 (2.7) 2.0 (2.4)
1273AS-H-330M=P3 33 ±20 174.0 (145) 1.6 (2.1) 1.9 (2.2)
1273AS-H-470M=P3 47 ±20 289.0 (241) 1.3(1.7) 1.3(1.5)
1248AS-H-1R5N=P3 1.5 ±30 10.1 (8.4) 10.0 (14.0) 8.0 (9.4)
1248AS-H-2R2N=P3 2.2 ±30 13.2 (11) 8.6 (12.0) 7.0 (8.3)
1248AS-H-3R3N=P3 3.3 ±30 19.2 (16) 7.2 (9.4) 5.6 (6.6)
1248AS-H-4R7N=P3 4.7 ±30 22.8 (19) 6.2 (8.4) 5.3 (6.2)
1248AS-H-6R8N=P3 6.8 ±30 36.0 (30) 4.8 (6.6) 4.2 (4.9)
1248AS-H-100M=P3 10 ±20 52.8 (44) 4.1 (5.4) 3.4 (4.0)
1248AS-H-150M=P3 15 ±20 78.0 (65) 3.4 (4.6) 2.7 (3.2)
1248AS-H-220M=P3 22 ±20 126.0 (105) 2.8 (3.7) 2.2 (2.6)
1248AS-H-330M=P3 33 ±20 168.0 (140) 2.4 (3.1) 1.8 (2.2)

(1) Inductance is measured with a LCR meter 4284A (Agilent
Technologies) or equivalent.
Test frequency at 100kHz
(2)DC resistance is measured with 34420A (Agilent Technologies) or
3541(HIOKI). (Reference ambient temperature 25°C)
(3)Maximum allowable DC current is that which causes a 30%
inductance reduction from the initial value, or coil temperature to
rise by 40°C, whichever is smaller. (Reference ambient
temperature 20°C)
