Miniature Chip SMD Power Inductor Unshielded For Step Down Transformers

  • 1
  • 2

Brand Name : Shareway

Model Number : MOX-UPI-0804 SERIES

Certification : RoHS,CE,UL

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel

Product name : 1-1000 uH Miniature Chip Unshielded Inductor MOX-UPI-0804 SERIES

Shield : Unshielded

Wire : Copper wire

Inductance : 1-1000 uH

Type : Inductor

Size : 12.9*9.4*5.2mm

Contact Now

1-1000 uH Miniature Chip Unshielded Inductor MOX-UPI-0804 SERIES

Description:

UPI-0804 surface mount power inductors are engineered for the
stringent high current requirements of step up and step down transformers,
notebook computers and various other handheld devices. We offers a unique
industrial design to meet the most robust applications. The MOX-UPI-0804 is
available in a wide range of inductance values to meet your design requirements.


Features:
• RoHS compliant.
• High current ratings.
• Low cost.
• MoxiE custom designs available.

Part Number Available
Tolerances

Inductance

(uH)

Test Frequency

(kHz)

RDC

(Ω Max.)

Isat (1)

(A)

Irms (2)

(A)

SRF

(MHz)Typ.
MOX-UPI-0804-1R0M-N 20(M) 1.0 100 KHz,0.1 V 0.009 9.00 6.80 100.0
MOX-UPI-0804-1R5M-N 20(M) 1.5 100 KHz,0.1 V 0.010 8.00 6.40 90.0
MOX-UPI-0804-2R2M-N 20(M) 2.2 100 KHz,0.1 V 0.012 7.00 6.10 80.0
MOX-UPI-0804-3R3M-N 20(M) 3.3 100 KHz,0.1 V 0.015 6.40 5.40 65.0
MOX-UPI-0804-4R7M-N 20(M) 4.7 100 KHz,0.1 V 0.018 5.40 4.80 45.0
MOX-UPI-0804-6R8M-N 20(M) 6.8 100 KHz,0.1 V 0.027 4.60 4.40 38.0
MOX-UPI-0804-100M-N 20(M) 10.0 100 KHz,0.1 V 0.038 3.80 3.90 30.0
MOX-UPI-0804-150M-N 20(M) 15.0 100 KHz,0.1 V 0.046 3.00 3.10 27.0
MOX-UPI-0804-220M-N 20(M) 22.0 100 KHz,0.1 V 0.085 2.60 2.70 19.0
MOX-UPI-0804-330M-N 20(M) 33.0 100 KHz,0.1 V 0.100 2.00 2.10 15.0
MOX-UPI-0804-470M-N 20(M) 47.0 100 KHz,0.1 V 0.140 1.60 1.80 12.0
MOX-UPI-0804-680M-N 20(M) 68.0 100 KHz,0.1 V 0.200 1.40 1.50 10.0
MOX-UPI-0804-101M-N 20(M) 100.0 100 KHz,0.1 V 0.280 1.20 1.30 9.00
MOX-UPI-0804-151M-N 20(M) 150.0 100 KHz,0.1 V 0.400 1.00 1.00 6.00
MOX-UPI-0804-221M-N 20(M) 220.0 100 KHz,0.1 V 0.610 0.80 0.80 5.00
MOX-UPI-0804-331M-N 20(M) 330.0 100 KHz,0.1 V 1.020 0.60 0.60 4.50
MOX-UPI-0804-471M-N 20(M) 470.0 100 KHz,0.1 V 1.270 0.50 0.50 3.50
MOX-UPI-0804-681M-N 20(M) 680.0 100 KHz,0.1 V 2.020 0.40 0.40 2.50
MOX-UPI-0804-102M-N 20(M) 1000.0 100 KHz,0.1 V 3.000 0.30 0.30 2.00

1-1000 uH Miniature Chip Unshielded Inductor MOX-UPI-0804 SERIES

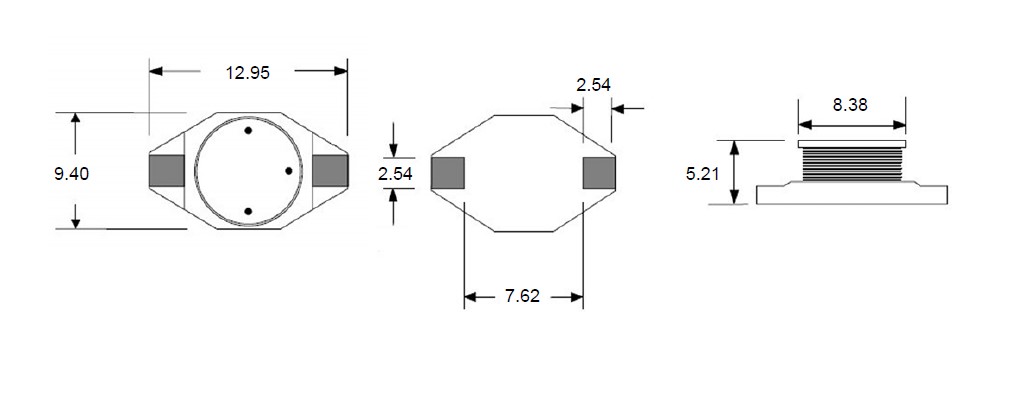

Dimensions:

Miniature Chip SMD Power Inductor Unshielded For Step Down Transformers
